HOME / PRODUCT / MSD HVC-2 Blaster Coil-44,000V, Blue

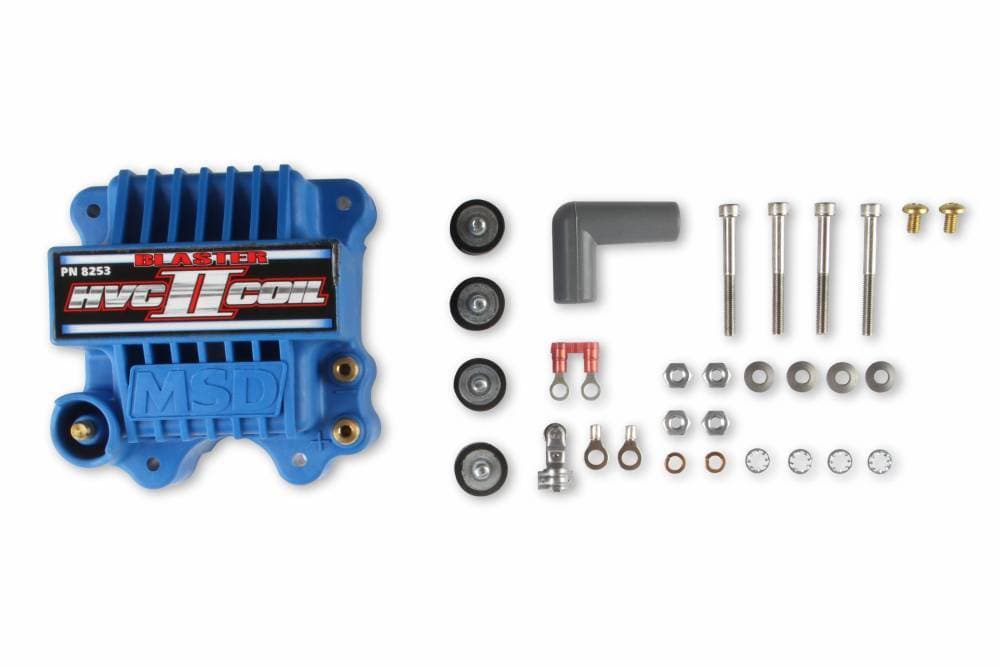

MSD HVC-2 Blaster Coil-44,000V, Blue

Name: MSD HVC-2 Blaster Coil-44,000V, Blue
Brand: MSD Performance
SKU: MSD-8253
Price: 349.95 USD
Availability: InStock

SKU: MSD-8253

The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.

$349.95

Loading options…

Description

Designed for high rpm, long duration applications using MSD 6 Series Ignitions

New U-core winding design produces more voltage and current

100:1 turns ratio and lower primary resistance produce high voltage output

Windings are encased in fracture resistant compound for vibration resistance

Dupont Rynite housing with isolated tower and brass primary terminals

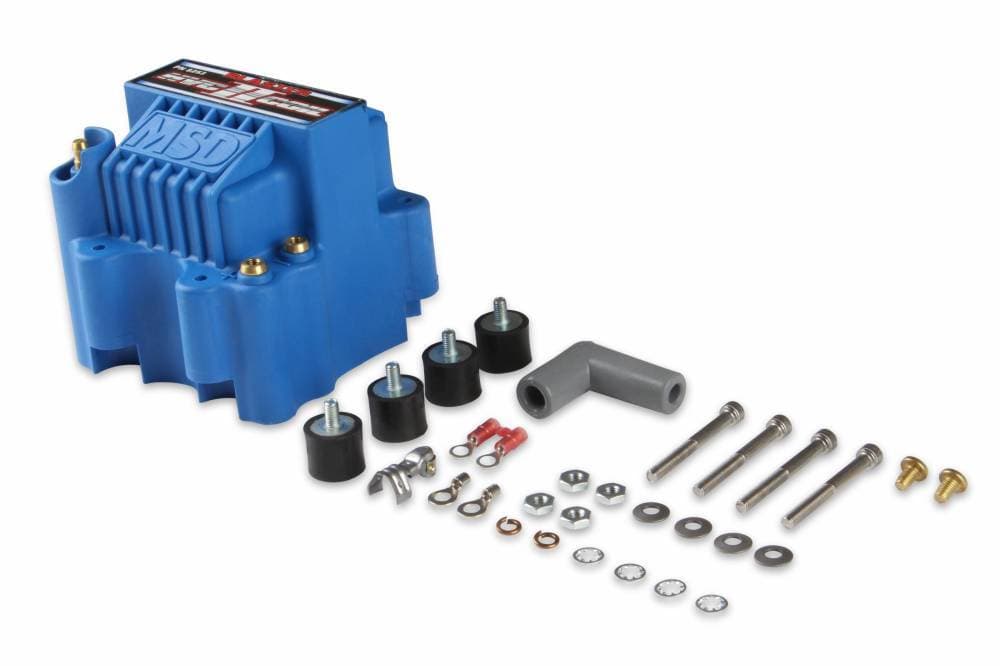

Supplied with rubber shock mounts

No CARB Exemption Order Number

SPECS

Brand	MSD
Emission Code	4
Inductance	3.5 mH
Maximum Voltage	44,000 Volts
Peak Current	450 mA
Primary Resistance	.16 OHMs
Product Type	Ignition Coil
Secondary Resistance	630 OHMs
Spark duration	450 uS
Turns Ratio	100:1
Warranty	Limited 1 Year Warranty
Weight	3.75 Lbs
UPC	085132082537
Part Number	8253
