Improved output coil for electronic ignitions, and MSD Ignitions
Efficient winding design and assembly creates a compact housing
Primary and secondary windings are encased in Ciba polyurethane
70:1 turns ratio and lower primary resistance produce high voltage output
Dupont Rynite housing with a tall tower and brass primary terminals
CARB E.O. Approved

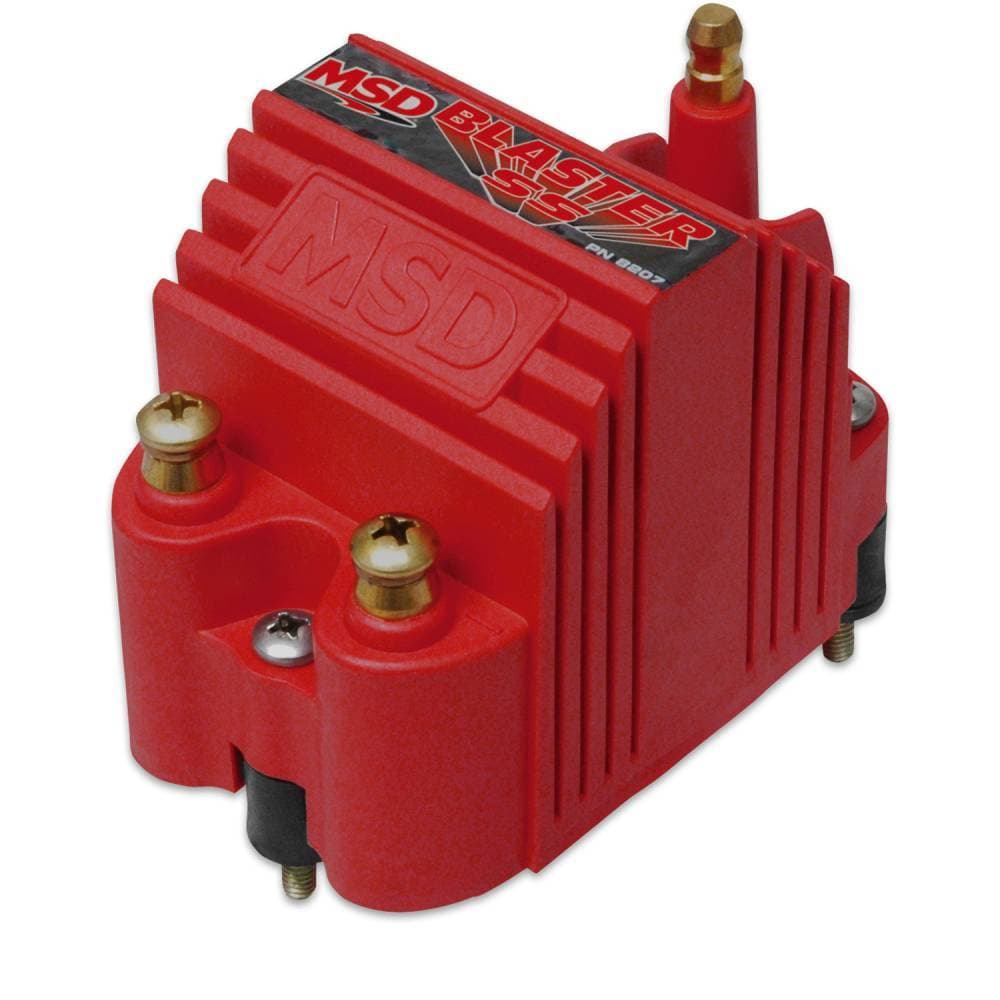

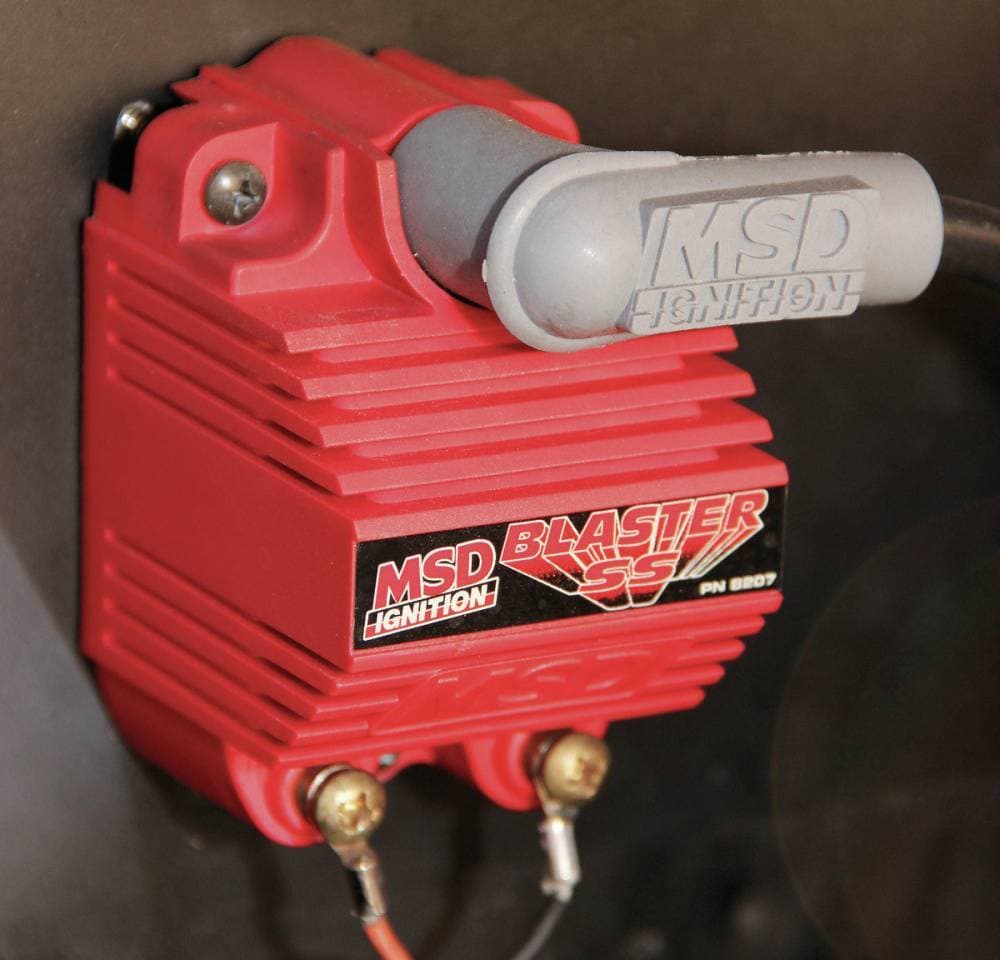

Don’t let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts!The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The Blaster SS features brass terminals and a sturdy Rynite housing. It is supplied with a 90° boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.
Coil Specs |
Turns ratio: |
70:1 |
Primary resistance: |
.355 OHMs |
Secondary resistance: |
4.4K OHMs |
Inductance: |
6.9 mH |
Maximum voltage: |
40,000 Volts |
Peak current: |
300 mA |
Spark duration: |
220 uS |
Weight: |
N/A |
