Routing spark plug wires is an art form. It takes patience and time to route your wires away from the headers, through separators and to the distributor cap. Some wire sets fit perfect, but a lot of people want to build their own so they can route them exactly how they see fit. Here at Butler we have been custom routing wires on all of our engines and now we are offering these fully assembled wire sets to you. HEI style terminals and no more cutting, stripping, and assembling only to find a wire doesn't work.
Features:

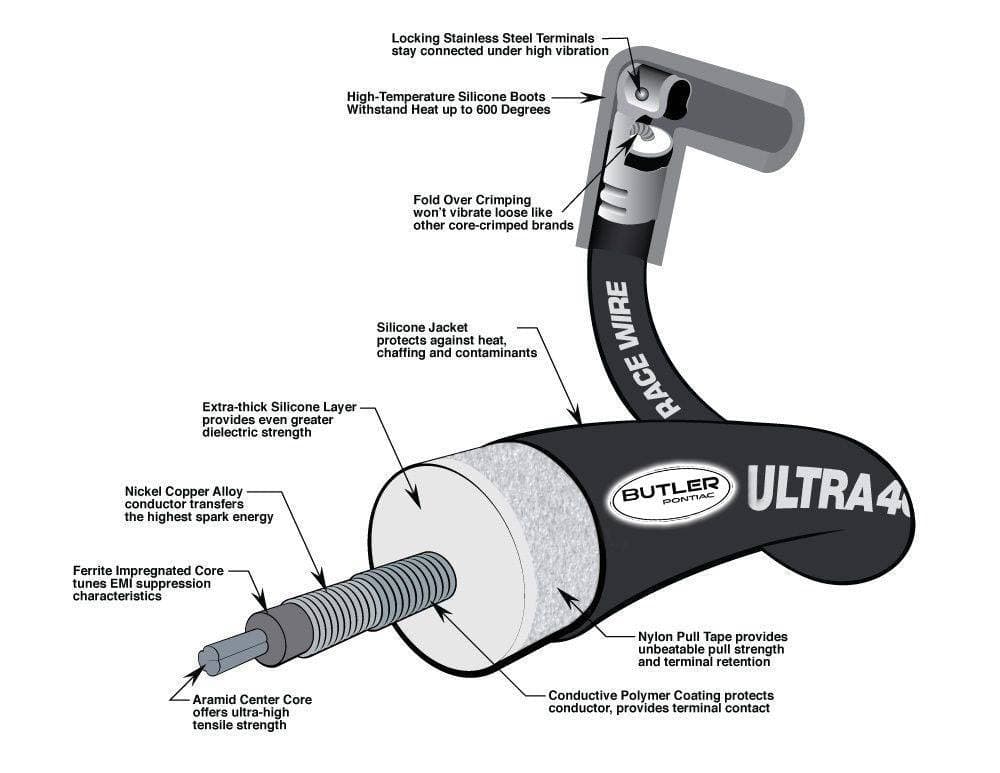

- Manufactured for Butler using Moroso Ultra-40 Race Wire is the standard in high performance ignition wire
- Butler Logo shrink tubing to seal the boots, and numbered ID tags.
- Optimized EMI/RFI resistance
- Used in the highest level of racing applications, from dual mag Top Fuel Cars thru NASCAR Cup Series and more
- 8.65mm diameter wire with 40 ohms of resistance per foot
- Incorporates a highly engineered spiral wound conductor
- Maximizes energy transfer and minimizes electro magnetic interference (EMI) and radio frequency (RF)interference noise
- Angled spark plug side boots
- Includes Wire Separators
(Since Ignition Coils can be mounted in various locations we supply a 30" coil wire)
Measured, cut, assembled, and tested (ohmed) in our own shop
To install find top dead center on number 1 cylinder on Compression stroke (passenger front), point rotor button toward engine slightly toward #1 cylinder. Align cap as shown in the picture
