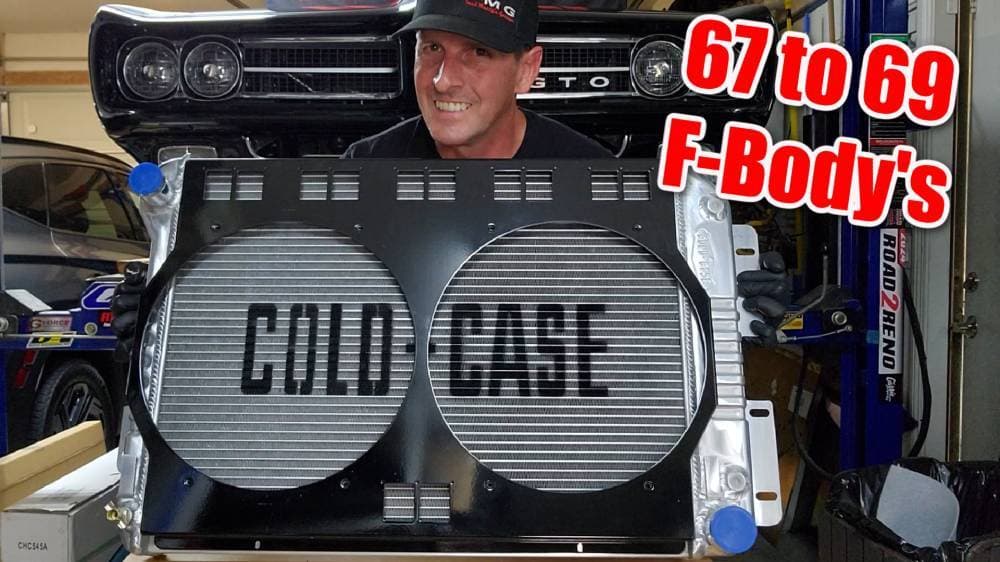

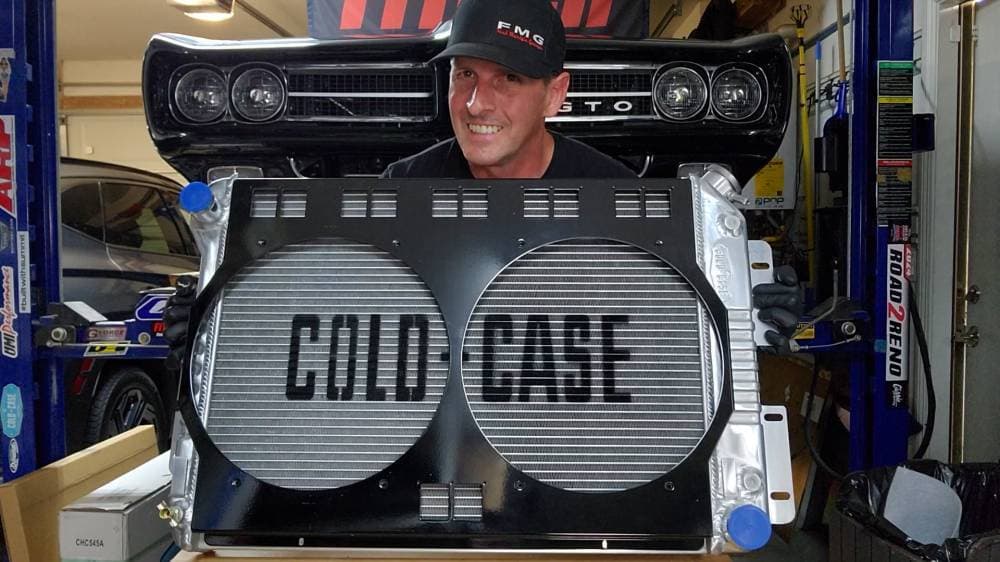

This shroud is designed for 1967 through 1969 Pontiac Firebird's using Cold Case radiator core CHC11A to mount Dual 12 inch fans.
Kit incl
udes:

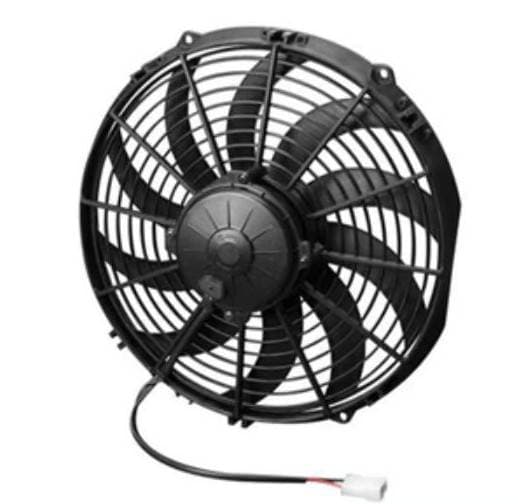

- (2) 12" Spal Puller fans (CFM output is 1451 per fan)
- (6) Rubber flap doors
- Stainless Hardware

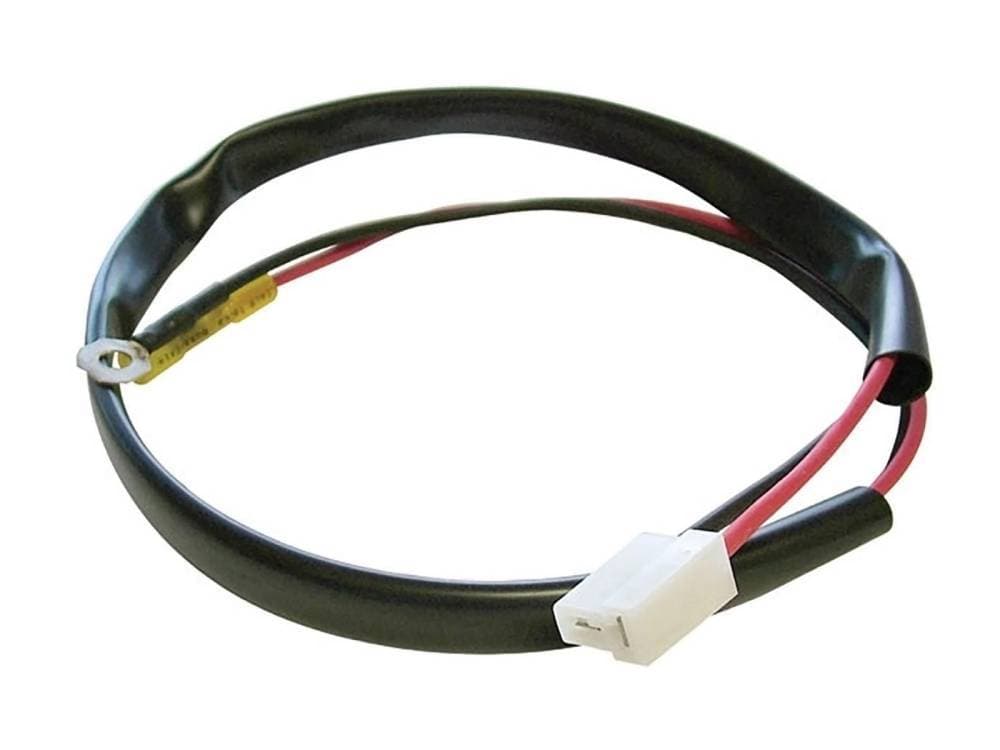

- (2) Spal Pigtails

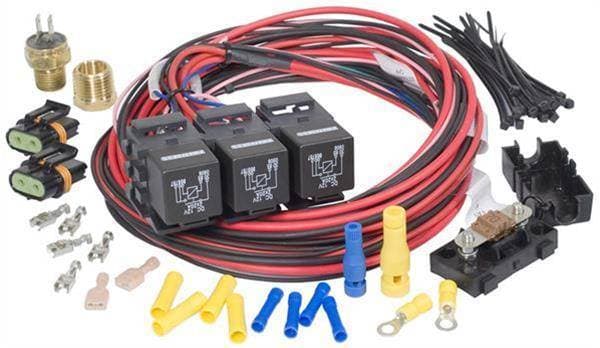

- Painless dual wiring harness 195 degrees on 185 degrees off.
Shroud Custom Designed by Fast Monty and manufactured by SendCutSend. Stocked and shipped from Butler Performance
![]()

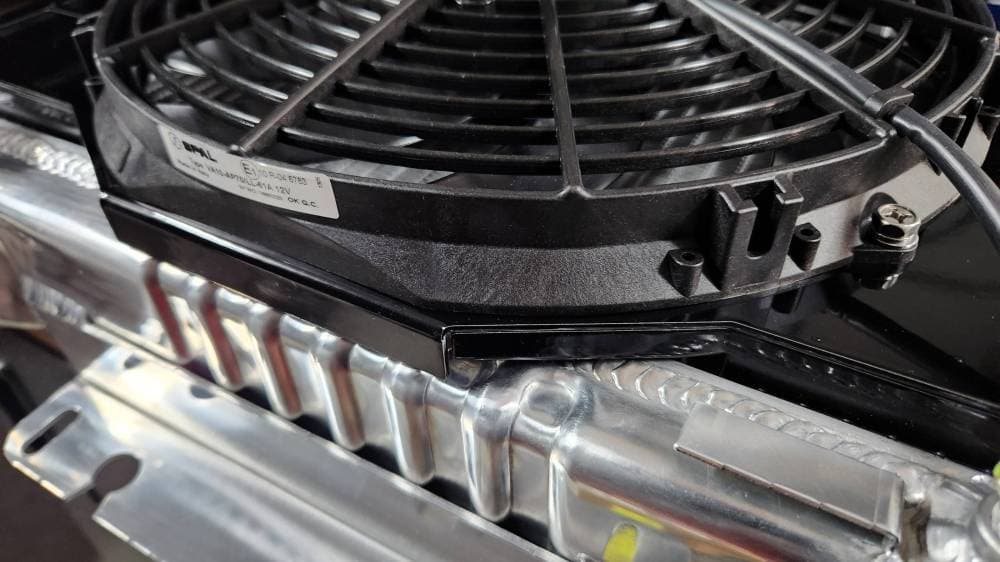

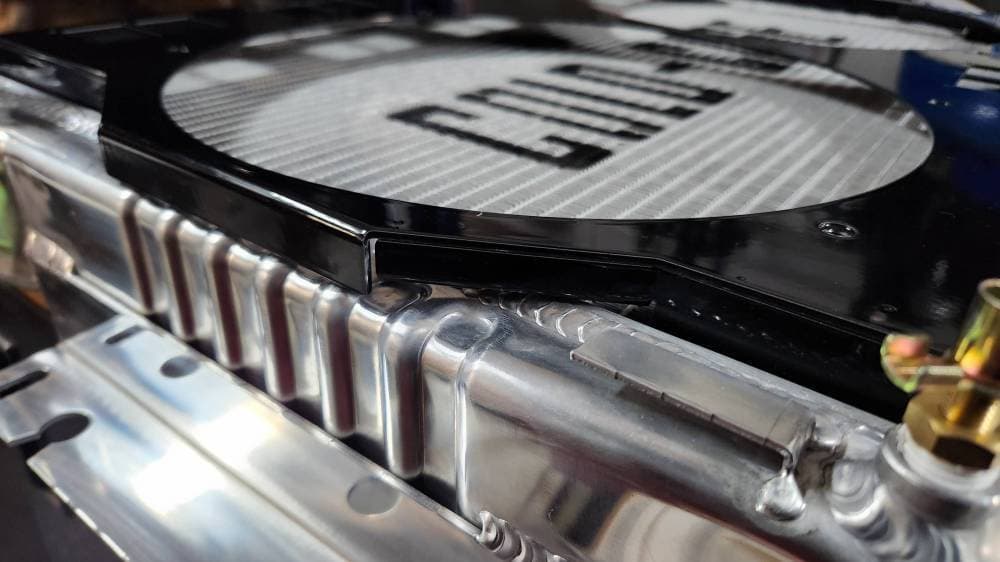

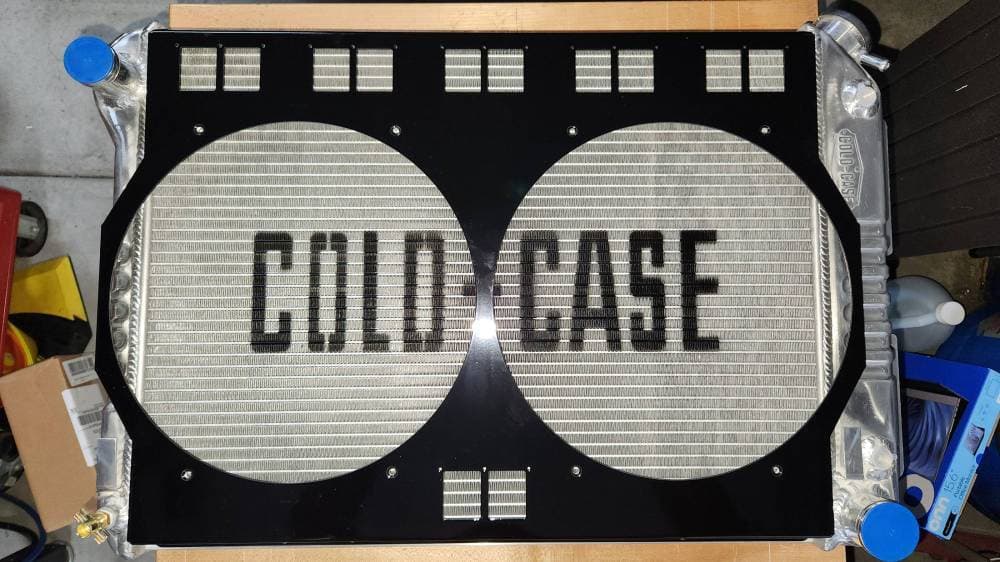

This shroud is a three piece design due to the "Down Flow" style radiator. There are a total of 12 threaded holes, 8 for the fans, and four for the side brackets. All are M6x1.
Stocked in Raw Aluminum. Powder Coated lead time is around 2-3 weeks to ship.

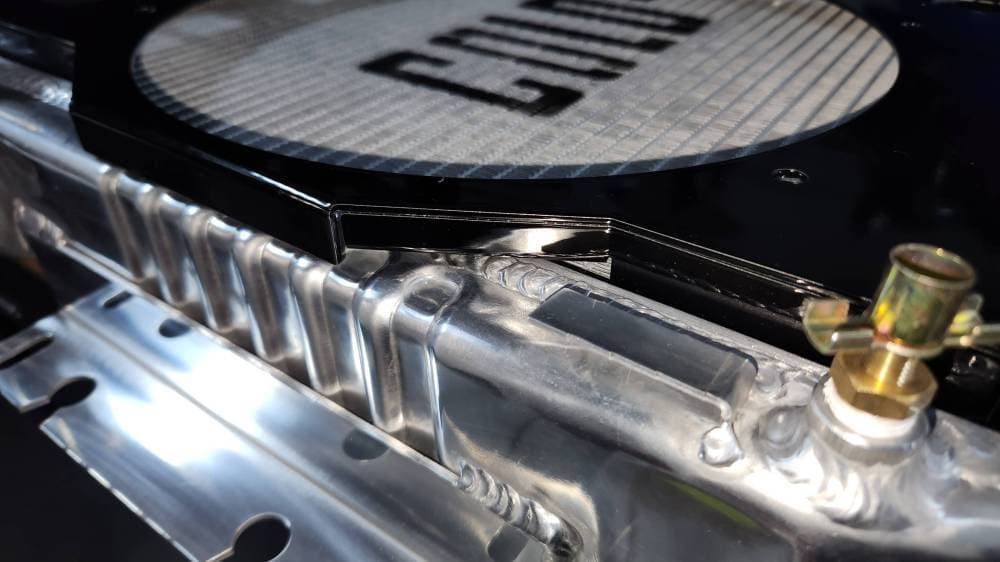

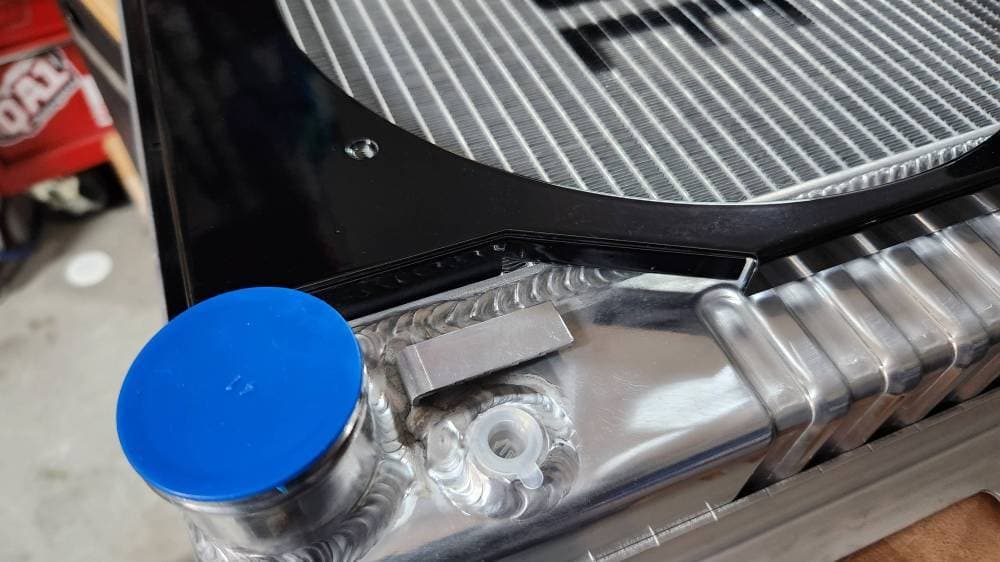

The Raw Aluminum version will have witness marks, as pictured near the bends, most of which can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look. Or course, painting is an option too.

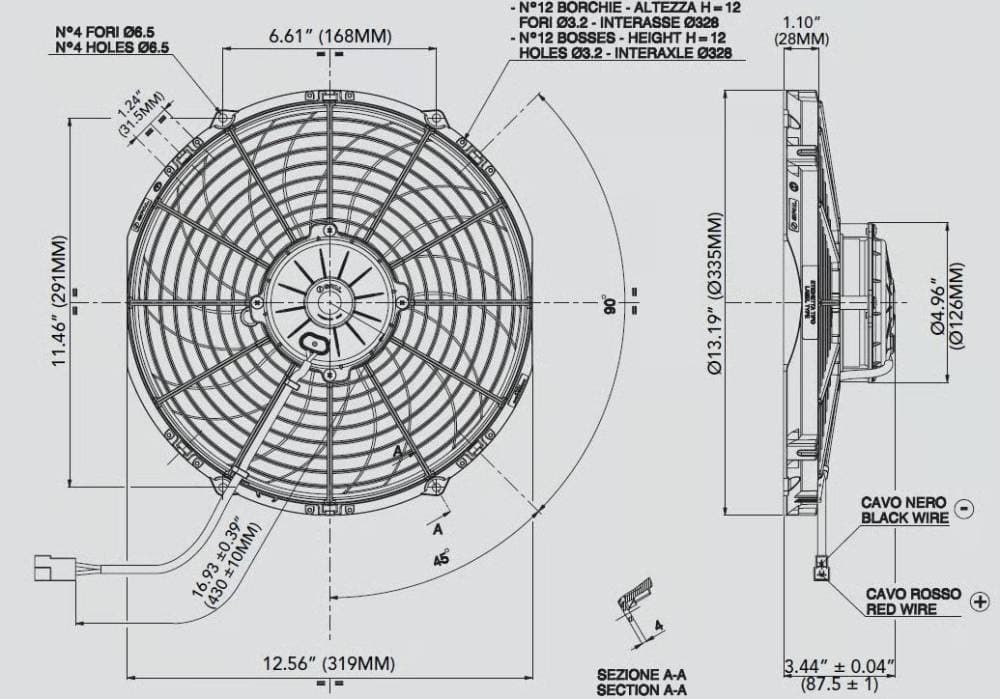

Spal Fan Specs
Puller:
Yes
Pusher:
No
Fan Diameter (in.):
12.00 in.
Fan CFM Range:
1,400-1,499
Maximum Fan CFM:
1,451 cfm
Fan Quantity:
Single
Electric Motor Type:
Brushed
Height (in.):
13.190 in.
Width (in.):
12.560 in.
Thickness (in.):
3.440
Number of Blades:
10 blades
Blade Material:
Plastic
Blade Color:
Black
Amp Draw:
14.50 amps
Does not include the Cold Case Radiator

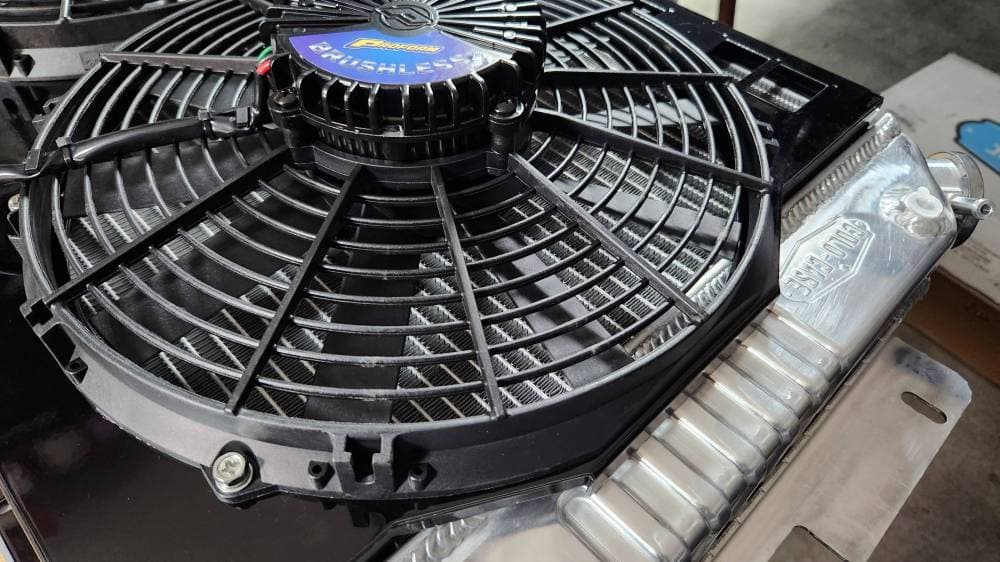

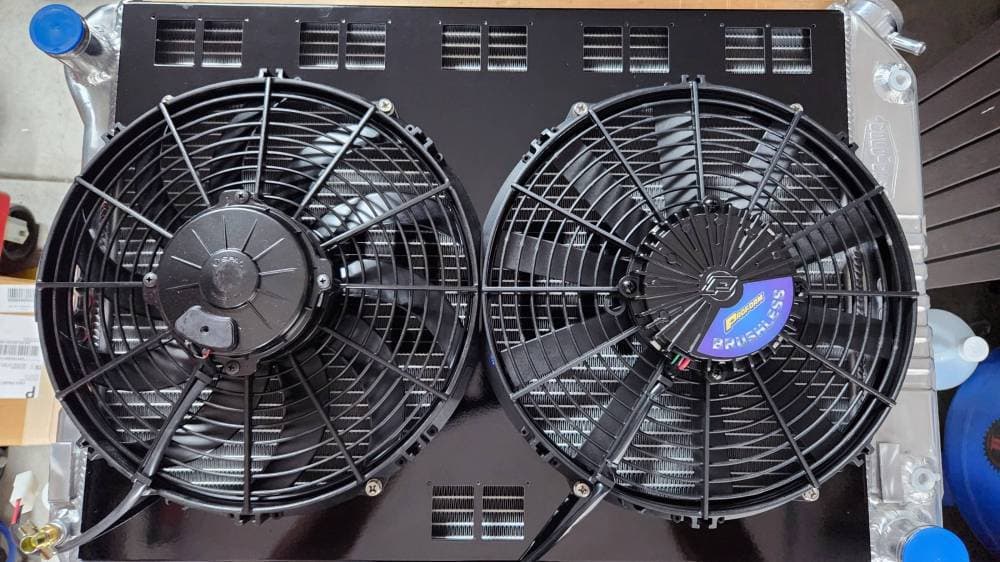

Shown in optional Black Finish and may be shown with Proform Fans
